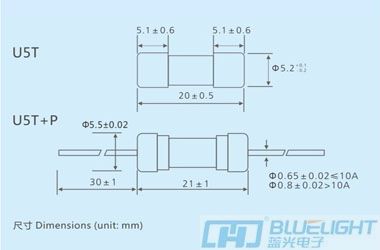

U5T系列/Φ5X20玻璃管延时保险丝
蓝光U5T系列/Φ5X20mm玻璃管保险丝简介：(延时小型保险丝)
Φ5X20mm 玻璃保险丝管（延时/慢断）5X20mm Glass Tube Fuses (Time-Lag)
材料Materials
本体Body：玻璃管Glass Tube
引线Lead：镀锡铜线Tin Plated Copper Wire
铜帽Cap：黄铜镀镍Nickel Plated Brass
可熔体Element：合金丝Alloy Wire
工作温度Operating Temperature：-55℃ to + 125℃
可焊性Solder ability：260 ℃, ≤ 3s. (波峰焊wave) /350±10 ℃, ≤ 3s. (烙铁焊soldering iron)
安规：UL Approved（详细见下表）
|  |
| 电气特性 ELECTRICAL CHARACTERISTICS | ||||||||
额定电流 Rated Current | 熔断时间 Opening Time | |||||||
| 100% | 135% | 200% | - | - | ||||
| Min. | Max. | Min. | Max. | |||||
| 160mA-6.3A | 4hour | 1hour | - | 120sec. | ||||
In accordance with UL248-1 , UL248-14
| 分断能力 INTERRUPTING RATING | |||||||
| UL | (160mA-10A) 10000 amperes at 125V AC | ||||||
| (160mA-1A) 35 amperes at 250V AC | |||||||
| (1.25A-3.5A) 100 amperes at 250V AC | |||||||
| (4A-10A) 200 amperes at 250V AC | |||||||
| 产品特性 PRODUCT FEATURES | |||||||
材质 Materials | 本体Body：玻璃管 Glass tube 引脚Lead：铜镀锡 Tin plated copper wire 铜帽Cad：黄铜镀镍 Nickel plated brass 熔丝Element：合金 Alloy | ||||||
操作温度 Operating Temperature | -55℃~125℃ (需考虑温度折减 Consider de-rating) | ||||||
可焊性 Solderability | 260℃, 3s Max. (波峰焊 Wave) 350±10℃， 3s Max.(烙铁焊 Soldering iron) | ||||||
耐焊接热 Resistance to Soldering Heat | 260℃, 10s Max. (波峰焊 Wave) 350℃, 5s Max.(烙铁焊 Soldering iron) | ||||||
建议焊锡参数 Recommended Soldering Parameters | 波峰焊 Wave soldering parameter 锡炉温度 Soldering por temperature: 260℃. 焊接时间 Solder dwell time: 2-5s Max. | ||||||
手工焊 Hand soldering parameter 烙铁温度 Soldering iron temperature 350±5℃ 焊接时间 Solder dwell time: 5s Max. | |||||||
储存条件 Storage Conditions | 在温度+10~60℃、相对湿度≤75%的密闭条件下可存放3年。 Can be stored for 3 years under tight seal condition at temperature +10~60℃ relative humidity ≤ 75%. | ||||||
在温度+10~60℃、相对湿度为95%的非露天下最多可存放30天。 At most can be kept 30 days at temperture +10~60℃ relative humidity be 95% under covered conditions. | |||||||
产品部件号 Part NO. | 额定电流 Current Rating | 安全认证 Safety Approvals | I2T参考值 Reference (A2Sec.) | ||||||
|  |
|
|
|
|
| |||
| U5T 0160 | 160mA | ● | 0.025 | ||||||
| U5T 0200 | 200mA | ● | 0.059 | ||||||
| U5T 0250 | 250mA | ● | 0.089 | ||||||
| U5T 0315 | 315mA | ● | 0.543 | ||||||
| U5T 0400 | 400mA | ● | 0.704 | ||||||
| U5T 0500 | 500mA | ● | 0.921 | ||||||
| U5T 0630 | 630mA | ● | 1.120 | ||||||
| U5T 0800 | 800mA | ● | 1.213 | ||||||
| U5T 1100 | 1A | ● | 1.426 | ||||||
| U5T 1125 | 1.25A | ● | 3.533 | ||||||
| U5T 1150 | 1.5A | ● | 5.627 | ||||||
| U5T 1160 | 1.6A | ● | 6.533 | ||||||
| U5T 1200 | 2A | ● | 12.55 | ||||||
| U5T 1250 | 2.5A | ● | 13.93 | ||||||
| U5T 1300 | 3A | ● | 14.66 | ||||||
| U5T 1315 | 3.15A | ● | 16.50 | ||||||
| U5T 1350 | 3.5A | ● | 19.41 | ||||||
| U5T 1400 | 4A | ● | 13.48 | ||||||
| U5T 1500 | 5A | ● | 56.86 | ||||||
| U5T 1630 | 6.3A | ● | 99.83 | ||||||
| U5T 1700 | 7A | ● | 162.2 | ||||||
| U5T 1800 | 8A | ● | 305.6 | ||||||
| U5T 2100 | 10A | ● | 383.6 | ||||||
